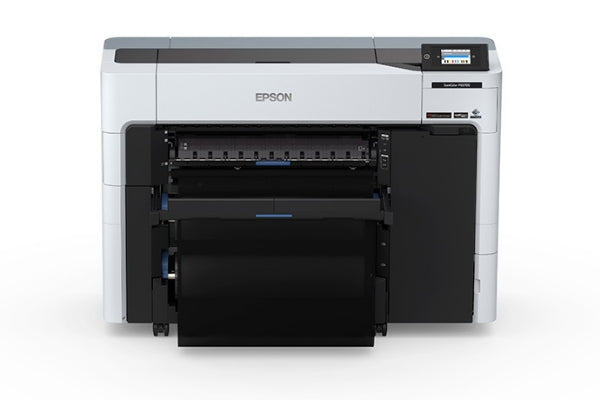

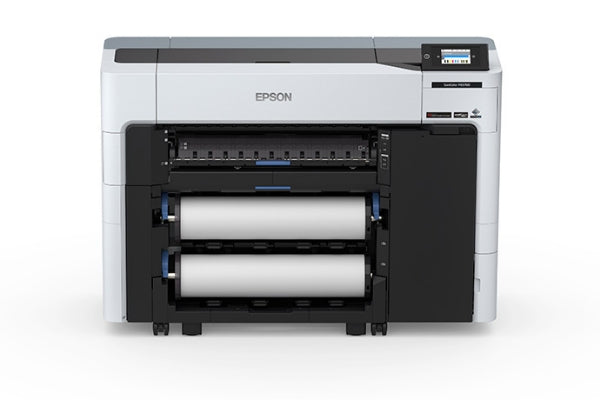

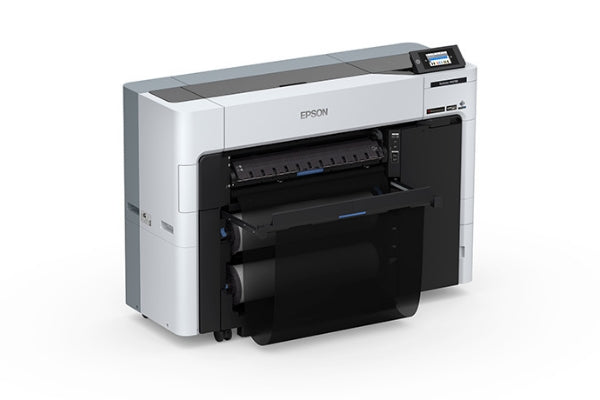

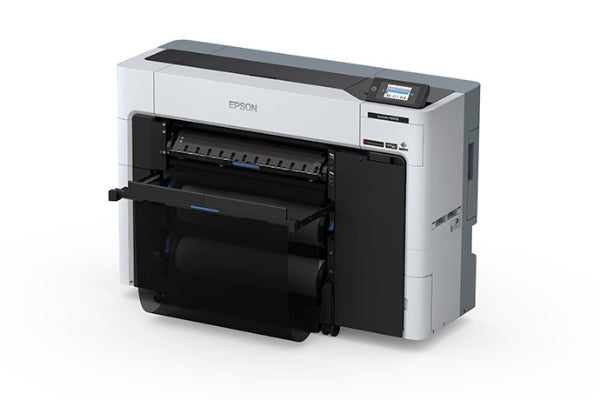

Epson SureColor P6570DE 24" Wide-Format Dual Roll Printer - New

$3,895.00
$3,895.00
    Epson SureColor P6570DE 24" Wide-Format Dual Roll Printer - New
    Epson SureColor P6570DE 24" Wide-Format Dual Roll Printer - New
    Epson SureColor P6570DE 24" Wide-Format Dual Roll Printer - New
    Epson SureColor P6570DE 24" Wide-Format Dual Roll Printer - New

    Tech Specs

    Note: Epson printers don't come with Inks, those are sold separately

    Print

    Printing Technology PrecisionCore MicroTFP 6-channel drop on-demand printhead
    Ink Type UltraChrome PRO6 pigment ink; 6-ink, 6-color ink
    configuration: Cyan, Magenta, Yellow, Matte Black, Photo Black and Gray
    Nozzle Configuration 9,600 nozzles (400 nozzles x 24 channels x 1 head)
    Droplet Technology
    Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per line
    Maximum Resolution 2400 x 1200 dpi
    Real Time Black Ink Switching/Dedicated Photo and Matte Black channels selected automatically
    Production Print Speed
    Plain Paper
    Draft: (1P) 1,220 sq ft/hr
    Speed: (2P) 926 sq ft/hr
    High Quality: (6P) 79 sq ft/hr
    Premium Photo Glossy Paper
    Speed: (4P) 298 sq ft/hr
    Quality: (6P) 174 sq ft/hr
    Max Quality: (16P) 79 sq ft/hr
    Printer Language/Drivers
    ESC/P Raster
    Memory/Built In
    4 Gig

    Epson Intelligent Ink Cartridges

    In-Box Cartridge Fill Volume
    240 mL each color x 6 colors total
    Retail Cartridge Fill Volume
    150 mL, 350 mL or 700 mL each color available x 6 colors total
    Ink Cartridge Shelf Life 2 years from printed production date or 6 months after opened
    Printer is designed for use with Epson cartridges only, not third-party cartridges or ink*

    Roll Media Handling

    Dual Front-Loading Rolls Two 10" to 24" wide
    2" or 3" Core Diameter User-adjustable roll media spindles
    Roll Cutting High-speed internal rotary cutter; auto or manual
    Minimum Auto Cut Length 8.66"
    Maximum Roll Diameter Up to 6.69"
    Maximum Roll Weight 15 lb
    Media Thickness 0.07 mm to 0.80 mm (roll and sheet media)
    Roll Paper Remaining Printable barcode tracking system – The amount of remaining media can be controlled and monitored from the front panel
    Top/Bottom Margins (mm) Normal: 20/15 (Premium Luster Photo Paper); Option: Top 3, 15, 20, 45/Bottom 3, 15
    Left/Right Margins 3 mm each side; 0.24" total; or 0" at BorderFree® width
    Integrated Take-Up Reel Auto forward and backward; lightbased media sensor with inner and outer winding options
    BorderFree Print Widths 10", 13", 14", 17", 20", 24"



    Sheet Media Handling

    Single Sheet, Front or Rear Loading Up to 24" wide
    Minimum Sheet Width: 8"
    Maximum Sheet Width: 24"



    Sheet Media Handling (Continued)

    Media Thickness 0.07 mm to 0.8 mm
    Posterboard 0.8 mm to 1.5 mm
    Top/Bottom Margins 3 mm/15 mm
    Top/Bottom Margins with Centering On 15 mm/15 mm
    Left/Right Margins 3 mm each side; 6 mm or 0.24" total; or 0" at BorderFree sizes
    BorderFree Print Widths 10", 13", 14", 17", 20", 24"



    Printable Area and Accuracy

    Line Accuracy ±0.1% of specified length (±0.26 mm min.)
    Minimum Sheet Size (Single Sheet) 8.5" x 11"
    Maximum Printable Length 298'
    Minimum Paper Width Roll: 10"/Sheet: 8"



    User Control Panel

    Articulating LCD Display 4.3" Touchscreen



    Printer Interfaces

    SuperSpeed USB 3.0, 100BASE-TX /1000BASE-T/IEEE 802.11
    b/g/n/ac, USB memory stick, 960 GB SSD Optional



    Operating Systems Supported

    Mac® OS X® 10.9.5 or later, macOS® 11 or later
    Windows® 10, Windows8.1, Windows 8, Windows7, Windows Vista®,
    Windows XP® (32-bit/64-bit), WindowsServer® 2019/2016/2012
    R2/2012/2008 R2/2008/2003 R2/2003 SP2 or later



    General

    Dimensions (W x D x H)
    54" x 20" x 38.4" (Storage and Operating)
    54" x 33" x 38.4" (Paper Basket Extended)
    Weight 260 lb
    Acoustic Noise Level
    Operating: 49.6 dBA according to ISO 7779
    Temperature
    Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C)
    Operating (Recommended): 65 ˚F to 75 ˚F (18 ˚C to 24 ˚C)
    Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)
    Relative Humidity
    Operating: 20% – 80% (no condensation)
    Operating (Recommended): 45% – 60% (no condensation)
    Storage: 5% – 85% (no condensation)
    Safety Standards
    USA and Canada (NRTL Certified, CSA/UL 62368-1).
    Compliant with FCC Class B Requirements.
    Electrical Requirements
    Voltage: AC 110 V – 240 V
    Frequency: 50 Hz – 60 Hz
    Current: 3.4 A – 1.6 A
    Power Consumption
    Printing: Approx. 75 W
    Ready: Approx. 32 W
    Sleep: 2 W (1000Base-T Ethernet in Standby)
    Power Off (Stand By): 0.3 W
