4 Color 4 Station Micro Registration Silk Screen Printing Machine T-shirt Printer
Specs
Description:

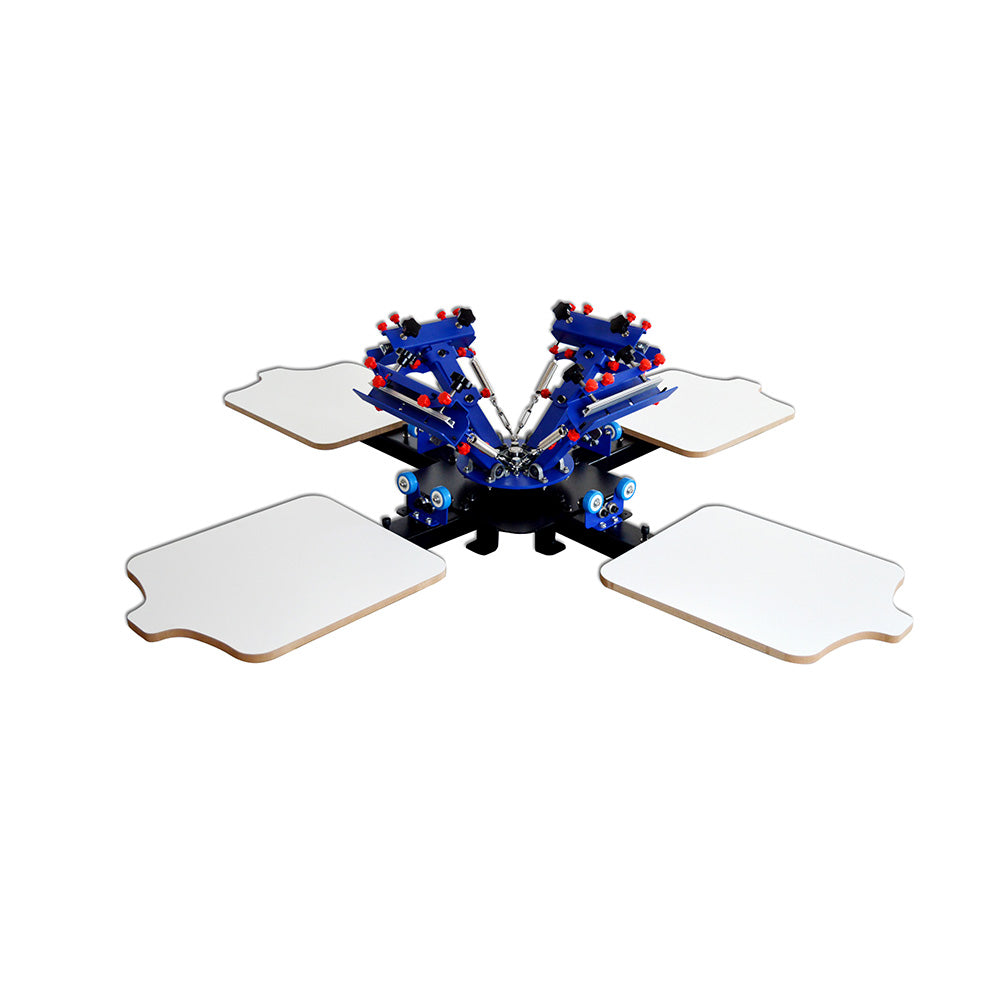

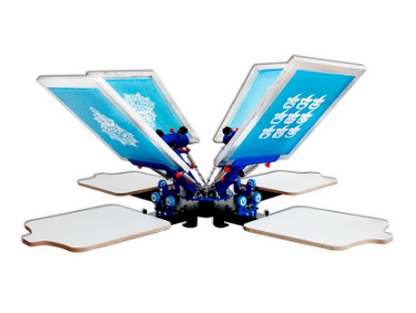

4 color 4 Station Micro Registration Silk Screen Printing Machine T-shirt Printer
This machine is mainly used for the four colors T-shirt overprinting, it is configured with four screen chucks and four t-shirt pallet stations;
The machine is fixed on the work table directly, The chuck of the screen frame can rotate at 360 degree; Users can operate at any pallet position;
This machine is manual mobile screen frame to match color, all the screen frames’ position is correct to any one pallet, the other one pallet will be correct, then the user can start overprinting. There is no need to correct the position of the color one by one.
Functions:

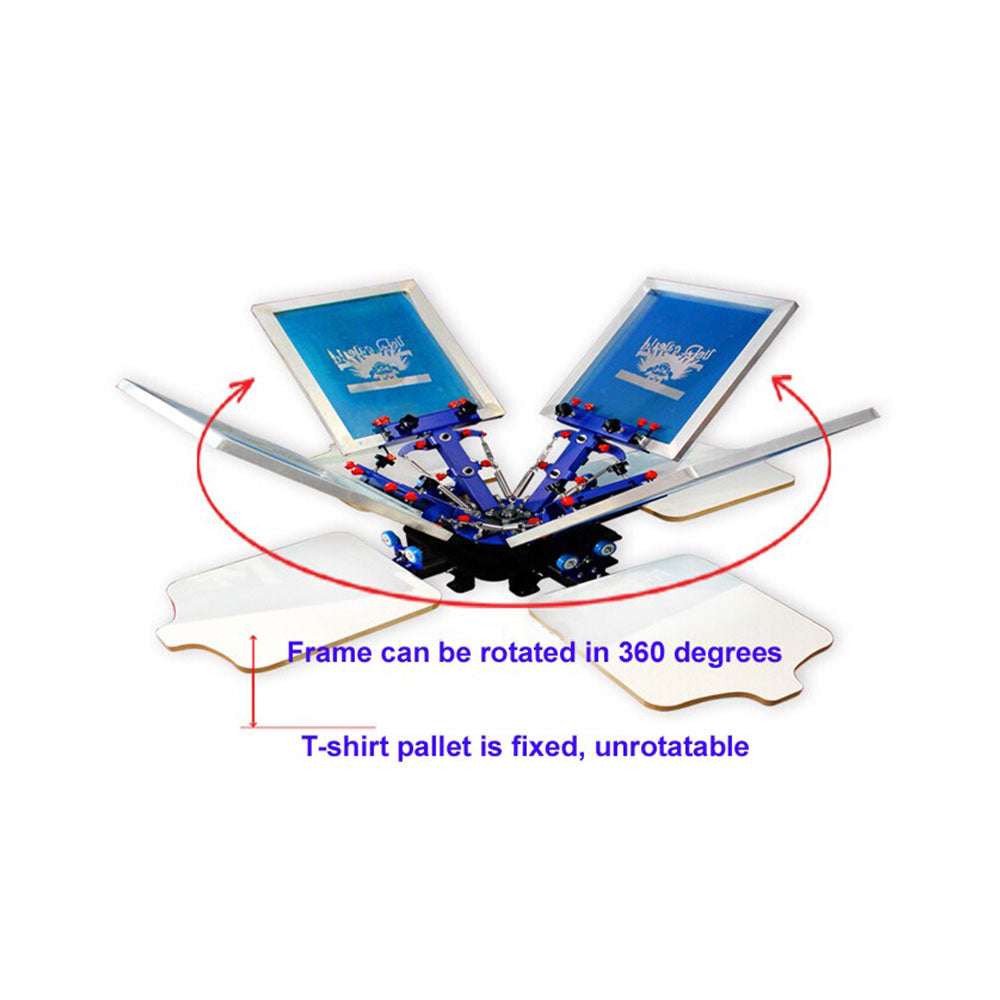

1. The chuck of the screen frame can rotate at 360 degree; Users can operate at any station or any pallet position;
2. Users can finish all the screen frame’s overprinting positioning at any pallet station,
All the screen frames’ position is correct to any one pallet, the other one pallet will be correct, then the user can start overprinting. There is no need to correct the position of every pallet.
3. Each screen frame fixing device is configured with eight micro adjust knobs. By using the knobs,user can micro adjust the screen frame from front to back, from left to right.It can make the overprinting more simple and more accurate.
4. Each screen frame’s fixing device is equipped with precise positioning wheel, when the positioning iron on the arm placed in positioning wheel closely, it can ensure the printing precision.
5. Each screen frame’s fixing device is equipped with big lock wheel, screen frame arm can easily fall into the metal positioning wheel when touch the two big lock wheels,and it also can prevent the direct collision between the positioning iron and the metal positioning wheel.
6. Each screen frame’s fixing device is equipped with adjustable height chuck positioning knobs and adjustable height knobs when lift up the screen frame;
7. Each screen frame’s fixing device is equipped with adjustable height chuck positioning knobs and adjustable height knobs when lift up the screen frame;
8. Screen frame chuck’s width is (11in) 29 cm; It is suitable for screen frame with outside size within (24 in) 60 cm and screen frame with thickness size is within 4 cm (1.6 in);
9. The screen frame chuck can be adjusted up to 5cm(2in) according to the height of the substrate.
10. Screen frame chuck knob fix the screen frame together with the special aluminum alloy plate, and it can be fit closely and be more stable;
11. The pallet can be fixed on the pallet arm directly by screws.
12. T-shirt type pallet of the machine is 55 cm (22 in) long, 45 cm(18in) wide, the thickness is 1.8 cm (0.7 in); Using furniture surface melamine high density board, the surface with small pits, and it is more suitable for printing T-shirt when scraping the pallet glue.
13. This machine is combination structure, small size, and it is more suitable for transportation; According to the installation diagram and configuration installation tools can install the machine.
14. The machine adopts advanced electrostatic spraying process, various parts using stainless steel, aluminum alloy, nickel and zinc plating technology. They are corrosion resistance, no fading, easy to clean, maintain color and finish for a long time, and it can use for a long time with no rust.
Usage:
All machines are configured with a full set of tools to install the machine; There is no need to prepare for other tools to complete the installation; Equipped with installation diagram and the packing list, parts installation location is very clear; All machines are configured with installation CD and operation video, it is more convenient for the user to install and use the machine.There are still spare parts in the box for users to change.
