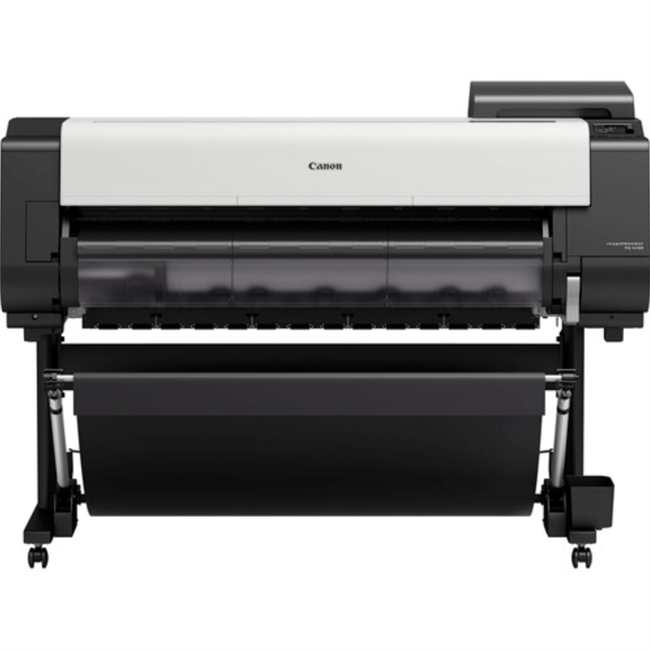

• Canon imagePROGRAF TX-4100 44" Large Format Printer with Catch Basket - New
1 1

Wide Image Solutions

Canon imagePROGRAF TX-4100 44" Large Format Printer with Catch Basket - New

$7,236.00
$7,236.00
    Canon imagePROGRAF TX-4100 44" Large Format Printer with Catch Basket - New

    Tech Specs

    Description

    Canon delivers the imagePROGRAF TX Series of Large-format Printers — the solution to help you capitalize on the emerging market trends and help lead your organization on the path to success.

    The new 44-inch TX-4100 large-format printer has been upgraded with faster printing speeds, an enhanced automatic roll loading function, and free-size borderless printing to improve productivity and efficiency. Preprocessing technology between pages and a faster cutter speed help to achieve printing speeds up to 3.2 ppm (plain paper, drawings) during continuous printing.

    • Intelligent Media Handling
    • Media Output Options
    • Optional 2nd Roll Unit
    • LUCIA TD Pigment Ink Set
    • Sub Ink Tank System
    • Print Head PF-06
    • Catch Basket

    PF-06 Print Head

    The 6-channel PF-06 print head is engineered to work with the printer's high-speed carriage and high-frequency ink ejection to help facilitate fast printing. This printer boasts Canon's print head technology that lays down ink with outstanding speed and accuracy. The PF-06 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-size ink droplets that help produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output with fine lines that are accurate to ±0.10% and as thin as 0.02mm.

    LUCIA TD Pigment Ink Set

    Featuring a 5-color LUCIA TD Pigment ink system, this ink produces fine lines and sharp text, even on non-inkjet coated paper. This ink helps provide a balance between bleed resistance, black density, and water resistance not found in dye ink. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand many outdoor conditions, especially outdoor job sites such as construction sites.

    Borderless Printing

    The TX-4100 supports borderless printing on all roll widths and custom widths as well as three sized borderless printing for a reduction in paper trimming.

    Intelligent Media Handling

    Intelligent Media Roll technology with an advanced sensor system allows the printer to detect roll width, length, and media type, reducing the amount of time it takes to load media into the printer.

    L-COA Processor

    Advanced print head technology achieves speeds up to 190 D-sized prints per hour on uncoated media. Powering these incredible print speeds is Canon's L-COA processor, which controls the optimal ink layout helping to ensure high resolution output.

    Sub-Ink Tank System

    This feature allows for virtually all the available ink in a tank to be used before having to replace it, helping to eliminate any wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.

    Operation Panel

    A large size 4.3" LCD touch screen has been integrated into the TX-4100. The large and more vibrant screen displays information such as remaining ink levels. The operation guide can easily be displayed from this screen and be scanned with a smartphone to access a library of information on how to replace consumables.

    USB Thumb Drive Printing

    Direct USB thumb drive printing supports JPEG and PDF file formats. Simply load your files onto your USB drive, step right up to the printer and plug your USB drive into the port. The TX-4100 supports selected page preview. When printing a multi-page PDF file from a USB, the user can select a certain page on the operation panel and display it in a preview window.

    Wi-Fi Compatible

    Printing jobs quickly is critical on the work site and in the office. The Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow, perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation.

    Security

    The TX-4100 supports the security features often required for large-scale business segments, such as finance institutions or government and military. Print with ease knowing your files are more protected with Canon's advanced security technology.

    500GB Hard Drive

    A built-in 500GB hard drive within the printer can increase productivity by relieving workload from the host computer, while providing a large capacity for print job data storage and retrieval.

    Media Output

    The multi-positional catch basket can be freely adjusted to enable various output positions and options.

    Optional Roll System

    The optional Multifunction Roll System is a versatile media handling solution system that enables either a second roll of media to be loaded on the printer or can be configured as a bi-directional media take-up unit. The optional second roll unit allows for the instant switching between different media types or the use of two rolls of the same paper for up to 190 D-sized prints per hour. As a take-up unit the operator can choose to use this option to rewind longer printouts, with the print surface on the outside or on the inside of the roll.



    Main Unit Specs

    Printer Type
    5-Color 44-inch Printer
    Number of Nozzles
    Total: 15,360
    MBK: 5,120 nozzles
    C, M, Y, BK: 2,560 nozzles each
    Nozzle Pitch
    1200 dpi
    Non-firing nozzle detection and compensation
    Print Resolution (Up to)
    2400×1200dpi (Max)
    OS Compatibility
    Windows® 7, 8.1, 10 (32/64bit)
    Windows® Server 2008 R2, 2012, 2012 R2, 2016, 2019 (64bit)
    Macintosh® OS 10.12.6 and later
    Standard Interfaces
    USB 2.0 High-Speed
    10/100/1000 Base-T/TX
    Ink Droplet Size
    5 picoliter
    Ink Capacity
    160 ml, 330ml or 700ml per color
    Ink Types
    Pigment Ink
    Color Set
    Pigment: Matte Black, Black, Cyan, Magenta, Yellow
    Buffer Ram
    128 GB (Virtual) 2 GB (Physical)
    Hard Drive
    500 GB
    Media Width
    Cut Sheet - 6” - 44”
    Roll Feed - 6” - 44”
    Media Thickness
    0.07-0.8mm (2.8-31.4mil)
    Maximum Roll Print Length
    Roll Feed - 59 (18 meters)
    Maximum Media Roll Diameter
    6.7” (170m)
    Borderless Printing Width
    All sizes
    Paper Feed Method
    Roll Feed: One Roll, Front-loading, Front Output
    Front Loading Manual Feed: Cut Sheet, Front Output
    Languages
    SGRaster, HPGL/2, HP-RTL, PDF, JPEG
    Noise Level Approx
    Operation: 51 dB (A) or less
    Standby: 35 dB (A) or less
    Acoustic Power: 6.9 Bels or less
    Physical Dimensions
    46” x 63” x 39” (Main unit and Catch Basket Opened)
    Weight
    approx. 252 lbs (Main unit and Catch Basket roll holder included, no inks, no print heads)
    Power Source
    AC-100-240V (50-60Hz)
    Power Consumption
    Maximum: 116W or less
    Standby 2.0W or less
    Power Off: 0.3W or less (Compliant with Executive Order)
    Operating Environment
    Temperature: 59°-86° F (15°-30° C)
    Relative Humidity: 10-80% (No Condensation)
    User-replaceable items
    Print Head (PF-06), Maintenance Cartridge (MC-30), Ink Tanks (PFI-110/PFI-310/PFI-710)
    Software Available
    Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Printer Driver Extra Kit, Free Layout Plus, TX Unified Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select
