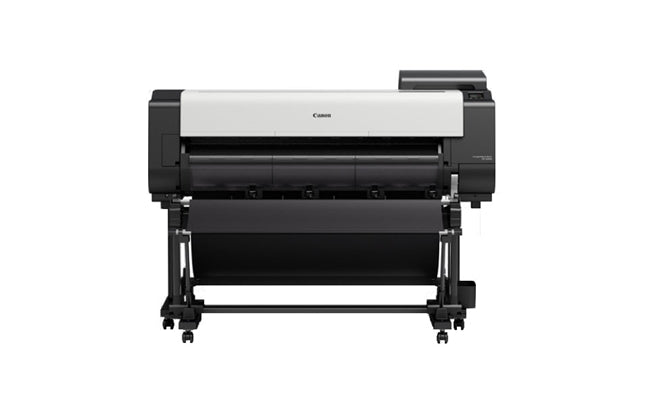

Canon imagePROGRAF TX-3000 36" Printer
| PRINTER SPECIFICATIONS | |
| PRINTER TYPE | 5-Color 36-inch Printer |
| NUMBER OF NOZZLES | Total: 15,360 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each |
| NOZZLE PITCH | 1200 dpi Non-firing nozzle detection and compensation |
| PRINT RESOLUTION (UP TO) | (Up to) 2400×1200dpi (Max) |
| OS COMPATIBILITY | Windows® 7, 8.1, 10 (32/64bit) Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit) |
| STANDARD INTERFACE | USB 2.0 High-Speed 10/100/1000 Base-T/TX |
| INK DROPLET SIZE | 5 picoliter |
| INK CAPACITY | 160 ml, 330ml or 700ml per color |
| INK TYPES | Pigment Ink |
| COLOR SET | Pigment: Matte Black, Black, Cyan, Magenta, Yellow |
| BUFFER / RAM | 128 GB (Virtual) 2 GB (Physical) |
| HARD DRIVE | 500 GB |
| MEDIA WIDTH | Cut Sheet - 8"- 36" Roll Feed - 8" - 36" |
| MEDIA THICKNESS | 0.07-0.8mm (2.8-31.4mil) Roll: 0.07 - 0.8 mm (2.8 - 31.4mil) |
| MAX. ROLL PRINT LENGTH | Roll Feed - 59' (18 meters) |
| MAX. MEDIA ROLL DIAMETER | 6.7" (170mm) |
| BORDERLESS PRINTING WIDTH (ROLL MEDIA ONLY) | 8”, 10", 12”, 14", 16” 17", 20”, 24", 30”, 36" B4 (10.12"/257 mm), A3 (11.69"/297 mm), A3+ (12.95"/329 mm), A2 (16.54"/420 mm), B2 (20.28"/515 mm), A1 (23.39"/594 mm), B1 (28.66"/ 728 mm), A0 (33.11"/841 mm) |
| PAPER-FEED METHOD | Roll Feed: One Roll, Front-loading, Front Output Front Loading Manual Feed: One Roll, Front Output |
| LANGUAGES | SGRaster, HPGL/2, HP-RTL, PDF, JPEG |
| NOISE LEVEL (APPROX.) | Operation: 51 dB (A) or less Standby: 35 dB (A) or less Acoustic Power: 6.9 Bels or less |
| PHYSICAL DIMENSIONS | 46.0“ x 54.7“ x 46.8“ (Main unit and TX Stacker) |
| WEIGHT | approx.257 lbs (roll holder included, no inks, no print heads) |
| POWER SOURCE | AC-100-240V (50-60Hz) |
| POWER CONSUMPTION | Maximum: 105W or less Standby 3.6W or less Power Off: 0.3W or less (Compliant with Executive Order) |
| OPERATING ENVIRONMENT TEMPERATURE | 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation) |
| USER-REPLACEABLE ITEMS | Print Head (PF-06) Maintenance Cartridge (MC-30) Ink Tanks (PFI-110/PFI-310/PFI-710) |
| SOFTWARE INCLUDED | TX Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Media Configuration Tool, PosterArtist Lite for Windows, Printer Driver Extra Kit for Windows/Mac (Free Print Utility Layout, Advanced Preview), Optimized Driver for AutoCAD, Print Plug-in for Microsoft® Word/Excel/PowerPoint® for Windows, Quick Utility Toolbox |
