• CALCA UV DTF Bundle A3 for Crystal Label UV DTF Printing Solution
1 1

Wide Image Solutions

CALCA UV DTF Bundle A3 for Crystal Label UV DTF Printing Solution

$9,081.00
$9,081.00
    CALCA UV DTF Bundle A3 for Crystal Label UV DTF Printing Solution

    Tech Specs

    CALCA UV DTF Bundle A3 for Crystal Label Printing Solution, with A3 UV Printer, laminator, UV ink, Laminating Plus AB Film
    This is a 2-in-1 roll to roll uv printer - Print on A film then transfer (UV DTF printing) or print direct on objects (direct to substrate printing).

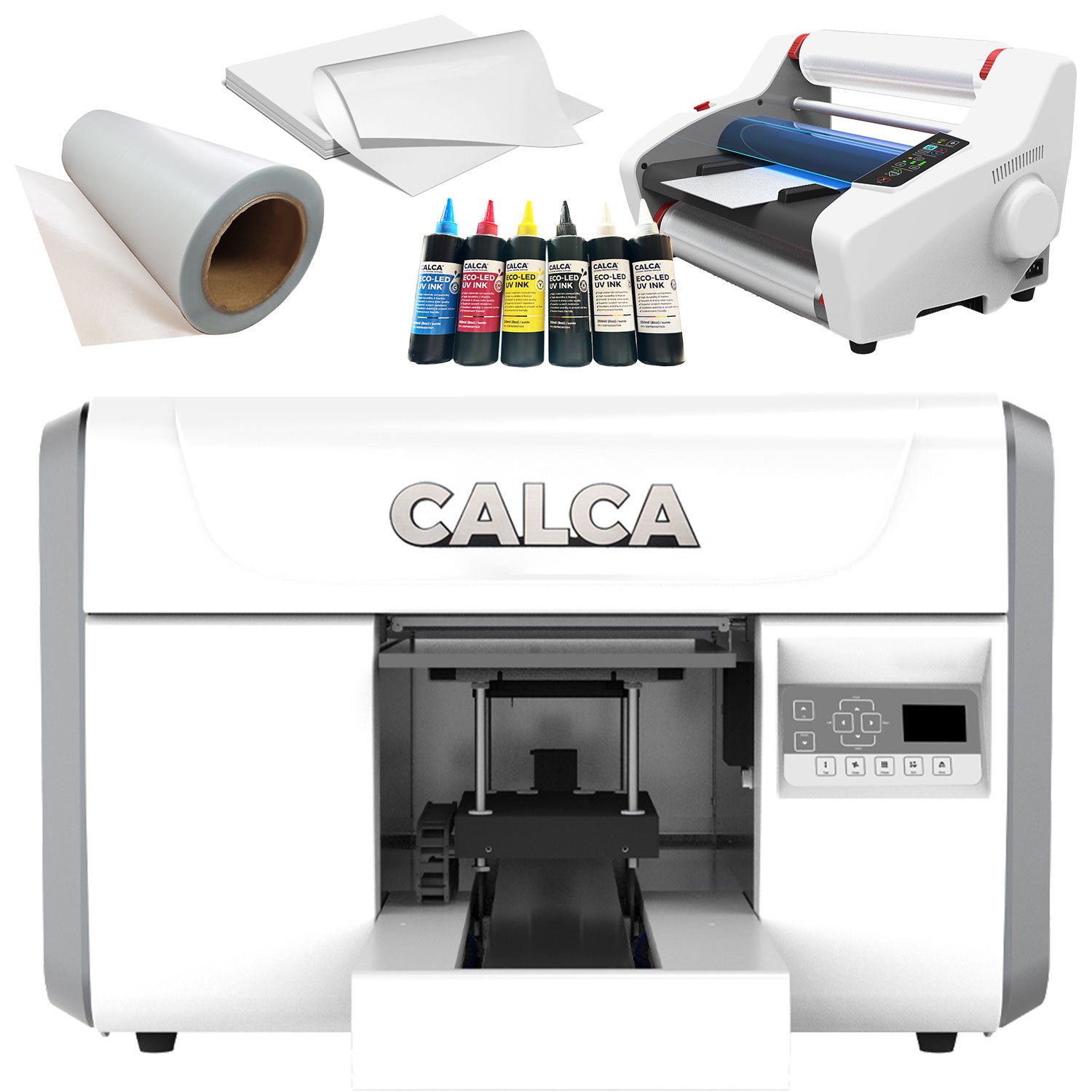

    CALCA A3 UV DTF, Crystal Label complete system solution including:
    1 set of CALCA A3 LED UV Flatbed Printer;
    1 set of Desktop Roll laminating;
    100pcs of Crystal Label Film A;
    1 roll of Crystal Label Film B;
    1 set 8 bottles of UV Ink with CMYKWWVV;

    Features:
    √ The resolution can reach 1200 dpi, and it can produce up to 8-color output.
    √ Compact, less foot print.
    √ Humanized design operation panel, convenient and fast operation.
    √ Various functions, support flat and roll printing.
    √ Simultaneous output of white, color and varnish.
    √ High precision lifting vacuum table - the flatness can be controlled within 0.1mm.
    √ Intelligent ink supply system - with ink shortage alarm function.

    Technical Specs:
    Print size: 297 x 420mm(11.69in x 16.53in)
    Print Head: EPSON I3200 x 1pc
    Nozzle spray force range: 2-3mm(0.0787in-0.0118in)
    Number of nozzle: 3200 (Individual)
    Distance between nozzles: 1/300inch
    Numbers of nozzle rows: 8
    Maximum number of supported ink colors: 8
    Effective print width: 300npi/1 list, 600npi/1 list, 1200npi/1 list
    Droplet ejection performance(Droplet volume and ejection frequency):
    2 levels of grayscale 5 pl (43.2KHz)
    3 levels of grayscale 6, 12.5 pl (21.6KHz)
    4 levels of grayscale 3.8, 6.2, 9.3 pl (21.6KHz)
    Print height: 0-85mm(0-3.34in)
    Ink type: Environmental UV curing ink
    Print version: White and color and varnish print as same time
    Printmode: CMYK+WWVV/CMYK+lcLmWW/CMYK+LcLmLkLLk/CMYK+CMYK
    RIP Software: Future Rip
    Print speed: 0.28-3sqm/h
    Highest print solution: 720 x 1200dpi
    Connection method: Network cable
    Graphic format: Tiff, Jpg, Eps, Pdf, Png
    Printer dimension(L x W x H): 100 x 902 x 592cm (39.37 x 35.51 x 23.31in)
    Net Weight: 60kg (132.28lbs)
    Packing size(L x W x H):112 x 102 x 78cm (44.09 x 40.16 x 30.71in)
    Gross Weight: 80kg (176.37lbs)
    Power: AC220 / AC110V, 50-60HZ, 1 phase; 140W, 1.3A(110V) / 0.6A(220V)
    Working environment:Temperature:20℃-28℃(68℉-82.4℉); humidity: 35%-65%
