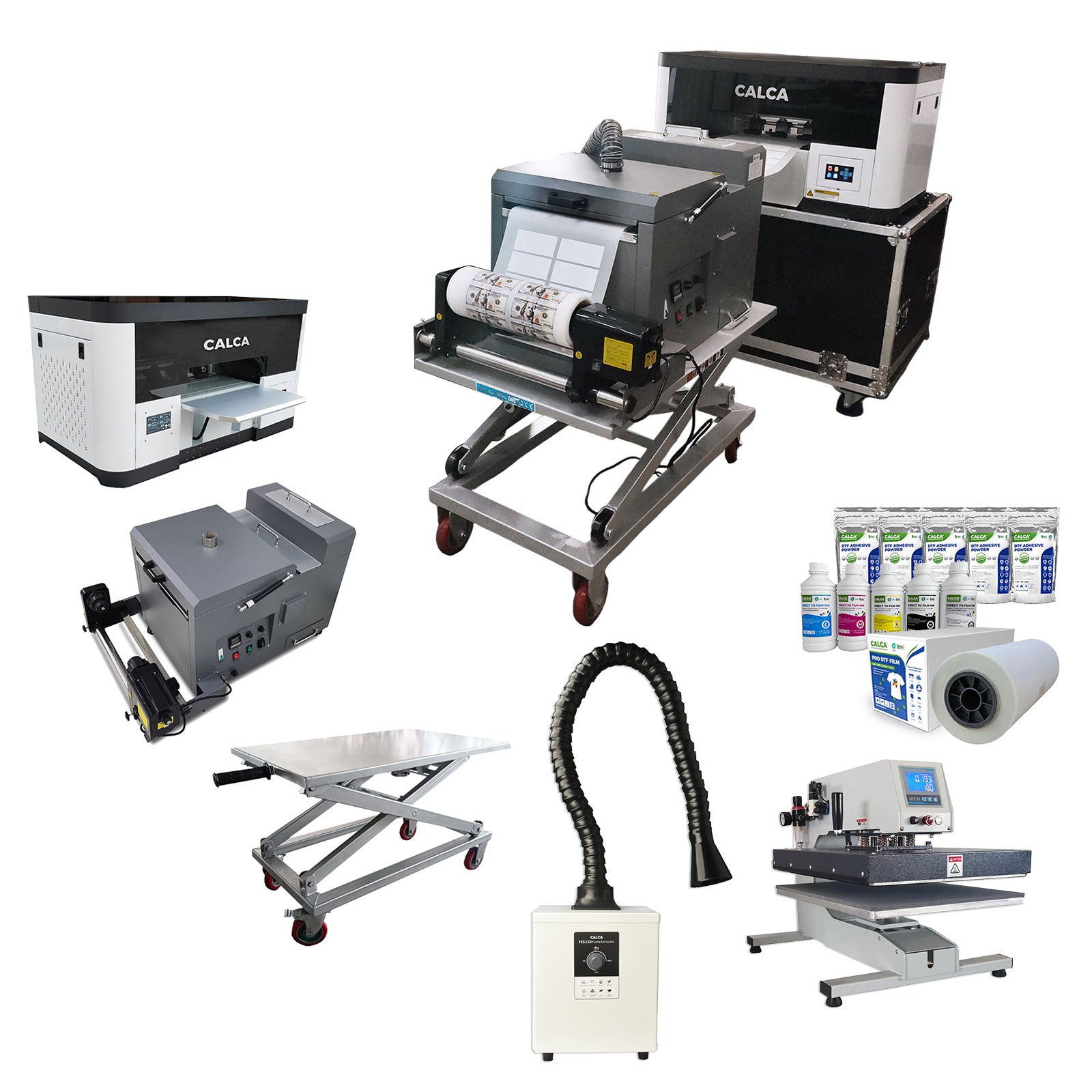

• CALCA Star 13in DTF Printing System Bundle With All The Necessary Supplies
1 1

Wide Image Solutions

CALCA Star 13in DTF Printing System Bundle With All The Necessary Supplies

$11,690.00
$11,690.00
    CALCA Star 13in DTF Printing System Bundle With All The Necessary Supplies

    Tech Specs

    What's Includes:

    1 x CALCA Star 13in (330mm) Easy DTF Printer With Dual Epson F1080-A1 (XP-600) Printheads, flight case package (Can be used to place printers)
    1 x CALCA 13.4in (340mm) Automatic TPU Powder Shaker and Dryer
    1 x CALCA 23.6in x 37.4in Height Adjustable (17in - 40in) Platform Cart, for DTF powder shaker
    1 x CALCA 150W Fume Extractor Filter and Air Purifier with 3-Stage Filtration System
    1 x MEM 16" x 20" High Quality Pneumatic Swing Away Heat Press
    CALCA DTF Inks CMYK color, 1L/color
    1L x CALCA White Ink
    11lbs x CALCA Medium Adhesive Powder, White
    2 Roll x CALCA 11.8in x 328FT DTF transfer film Hot Peel

    CALCA Advanced DTF System & Supplies --- Perfect production line combination of store for the US market.
    * Advanced DTF System: Self-developed CALCA® control system & DTF Fairy RIP Software, united stability and efficiency. Applied for CALCA DTF printer, powder shaker and dryer, oven, film cutter and air filter.
    * Advanced DTF Supplies: We researched and tested all DTF consumables to ensure the products we offer are reliable and productive. CALCA offerings for DTF printing will be inks, film and powder.
    * Having an automated workflow — Even if in part—is essential to stay competitive.

    Specifications

    CALCA ProStar13 DTF Printer With Dual Epson F1080-A1 (XP-600) Printheads
    Ink Sort: CMYK+WW Ink System, Textile Pigment Ink , 500ml per color ink bottle capacity
    Thickness: 0.06in to 0.24in (1.5mm to 6mm) Adjustable
    Dual Epson F1080-A1 (XP-600) printheads
    Maximum Printing Width: 13in (330mm)
    Maximum Roll Weight: 396lbs (20kg)
    Media Heater: Pre / Rear Heater (Can be controlled separately)
    Printing Speed: 6 pass: 5m²/h; 8 pass: 3m²/h
    Printing Resolution: 720X1080dpi, 720X1440dpi
    Printing Software: CALCA DTF Fairy RIP Software (CADLINK is optional)
    Print Head Cleaning: Automatic
    Package: Custom-made tough and rugged flight case, which offers the best protection for your DTF printer.
    Reusable: Display your equipment.
    Machine Size: 980mm x 640mm x 520mm (38.6in x 25in x 20.5in)
    Machine Weight: 90kg (198lbs)
    Packing Size: 1100mm x 850mm x 670mm (43.3in x 33.4in x 26.4in)
    Gross Weight: 120kg (265lbs)
    Requirements:
    • Working Power Supply: AC110V, 50HZ / 60HZ, 1 phase.
    • Current: 11A, 1200W
    • Operating System: Win7 / Win10
    • Temperature control set to 20-35°C (68°F-95°F) and 35 - 65% humidity
    • Relative Humidity: 40-60%
    A3 Economic Automatic DTF Powder Shaker and Dryer 13.4in (340mm) for DTF Printing on T-Shirts Clothes
    Maximum Shake Powder Width: 340mm (13.4inches)
    Functions: Shake powder control, dusting control, PID setting of curing temperature
    Heating and Drying Function: 4pcs Quartz infrared heat drying tube
    Rewinding Function: Automatic induction rewinding
    Heating Mode: Upper drying heating
    Machine Size: 35.7in x 21.3in x 22.6in (907mm x 542mm x 574mm)
    Powder Shaker and Dryer Weight: 79.2lbs (36kg)
    Packaging Size: 29.5in x 23.4in x 23.2in (750mm x 595mm x 590mm)
    Gross Weight: 110lbs (50kg)
    Requirements:
    Working Power Supply: AC110V, 50hz / 60hz, 1 phase.
    Current: 15A, 1650W
    CALCA 150W Fume Extractor Filter and Air Purifier with 3-Stage Filtration System for DTF Powder Shakers
    Rated Voltage: AC110V ± 5%
    Rated Current: 1.6A
    Rated Power: 180W
    Filtration efficiency: 0.3um, 95%
    Max air amount: 278m³/h
    Port: Φ75mm Flange
    Noise: ≤ 55dB
    Machine Size: 11in x 9.4in x 12.4in (280mm x 240mm x 315mm)
    Machine Weight: 26.5lbs (12kg)
    Package Size: 21.7in x 13.4in x 14.2in (550mm x 340mm x 360mm)
    Gross Weight: 28.2lbs (12.8kg)
    CALCA 23.6in x 37.4in Height Adjustable Heat Printing Equipment Platform Cart
    Platform Size:23.6in x 37.4in
    Load Capacity: 660lbs / 300kg
    Min. Height: 17in / 44cm
    Max. Height: 40in / 100cm
    Packing Size: 39.4in x 24.4in x 17.7in / 100cm x 62cm x 45cm
    Net Weight: 132 lbs / 60kg
    Gross Weight: 154lbs / 70kg
    MEM 16" x 20" High Quality Pneumatic Swing Away Heat Press
    Voltage and power :220V/2700W/13A or 110V /1800W/17A
    Check voltage at back side of the head
    Time Range: 0-999sec.
    Max. Temp. 500°F /260°C
    Cylinder distance:2in/5cm
    Heat plate size: 16"x 20"(40cm x 50cm)
    Dimensions(LxWxH): 30"x17"x21"( 77cm x 42cm x 54cm )
    Shipping Dimensions(LxWxH): 33"x22"x22" (84cm x 55cm x 56cm)
    Shipping Weight:165lbs(75kg)
    Max. press thickness: 2in(5cm)
    CALCA A3 DTF Film Rolls Printing Starter Supply Pack (1L CMYK, 1L W Ink, 11 lbs Powder, A3 Roll Film)
    CALCA DTF Inks CMYK color, 1L each color; 1L x CALCA White Ink
    11lbs x CALCA Medium Adhesive Powder, White
    2 Roll x CALCA 11.8in x 328FT DTF Transfer Film Hot Peel
