Wide Image Solutions

CALCA ProStar13 Wifi DTF Printing System Bundle with All The Necessary Supplies

Regular price
$13,622.00
Regular price
Sale price
$13,622.00
    CALCA ProStar13 Wifi DTF Printing System Bundle with All The Necessary Supplies
    CALCA ProStar13 Wifi DTF Printing System Bundle with All The Necessary Supplies
    CALCA ProStar13 Wifi DTF Printing System Bundle with All The Necessary Supplies
    CALCA ProStar13 Wifi DTF Printing System Bundle with All The Necessary Supplies
    CALCA ProStar13 Wifi DTF Printing System Bundle with All The Necessary Supplies
    CALCA ProStar13 Wifi DTF Printing System Bundle with All The Necessary Supplies
    CALCA ProStar13 Wifi DTF Printing System Bundle with All The Necessary Supplies

    Tech Specs

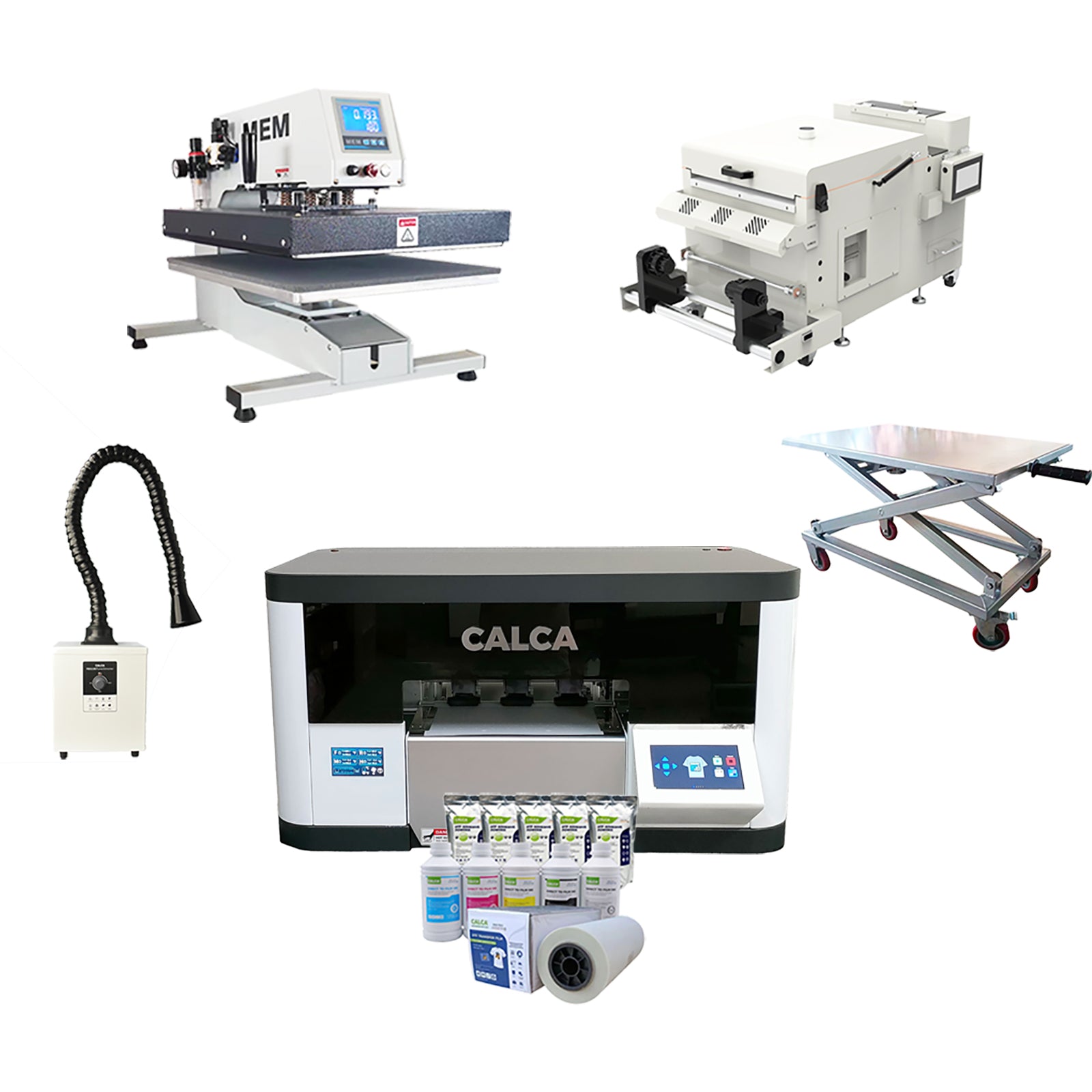

    What's Included:

    1 x CALCA ProStar13 Wifi DTF Printer With Dual Epson F1080-A1 (XP-600), Easy Operation
    1 x CALCA 15in (380mm) Deluxe Automatic TPU Adhesive Powder Shaker and Dryer
    1 x CALCA 23.6in x 37.4in Height Adjustable (17in - 40in) Platform Cart, for DTF powder shaker
    1 x CALCA 150W Fume Extractor Filter and Air Purifier with 3-Stage Filtration System
    1 x MEM 16" x 20" High Quality Pneumatic Swing Away Heat Press
    CALCA DTF Inks CMYK color, 1L/color
    1L x CALCA White Ink
    11lbs x CALCA Medium Adhesive Powder, White
    2 Roll x CALCA 11.8in x 328FT DTF transfer film Hot Peel

    Specifications

    CALCA ProStar13 Wifi DTF Printer With Dual Epson F1080-A1 (XP-600), Easy Operation Ink Sort: Textile Pigment Ink, 500ml per color ink bottle capacity
    Thickness: 0.06in to 0.24in (1.5mm to 6mm) Adjustable
    Maximum Roll Weight: 44lbs (20kg)
    Media Heater: Pre / Rear Heater (Can be controlled separately)
    Printing Speed: 6 pass: 5m²/h; 8 pass: 3m²/h
    Printing Resolution: 720X1080dpi, 720X1440dpi
    Printing Software: CALCA DTF Fairy RIP Software
    Print Head Cleaning: Automatic
    Package: Custom-made tough and rugged flight case, which offers the best protection for your DTF printer.
    Reusable: Display your equipment.
    Machine Size: 980mm x 640mm x 520mm (38.6in x 25in x 20.5in)
    Machine Weight: 90kg (198lbs)
    Packing Size: 1100mm x 850mm x 670mm (43.3in x 33.4in x 26.4in)
    Gross Weight: 120kg (265lbs)
    Requirements:
    • Working Power Supply: AC110V, 50HZ / 60HZ, 1 phase.
    • Current: 11A, 1200W
    • Operating System: Win7 / Win10
    • Temperature control set to 20-35°C (68°F-95°F) and 35 - 65% humidity
    • Relative Humidity: 40-60%

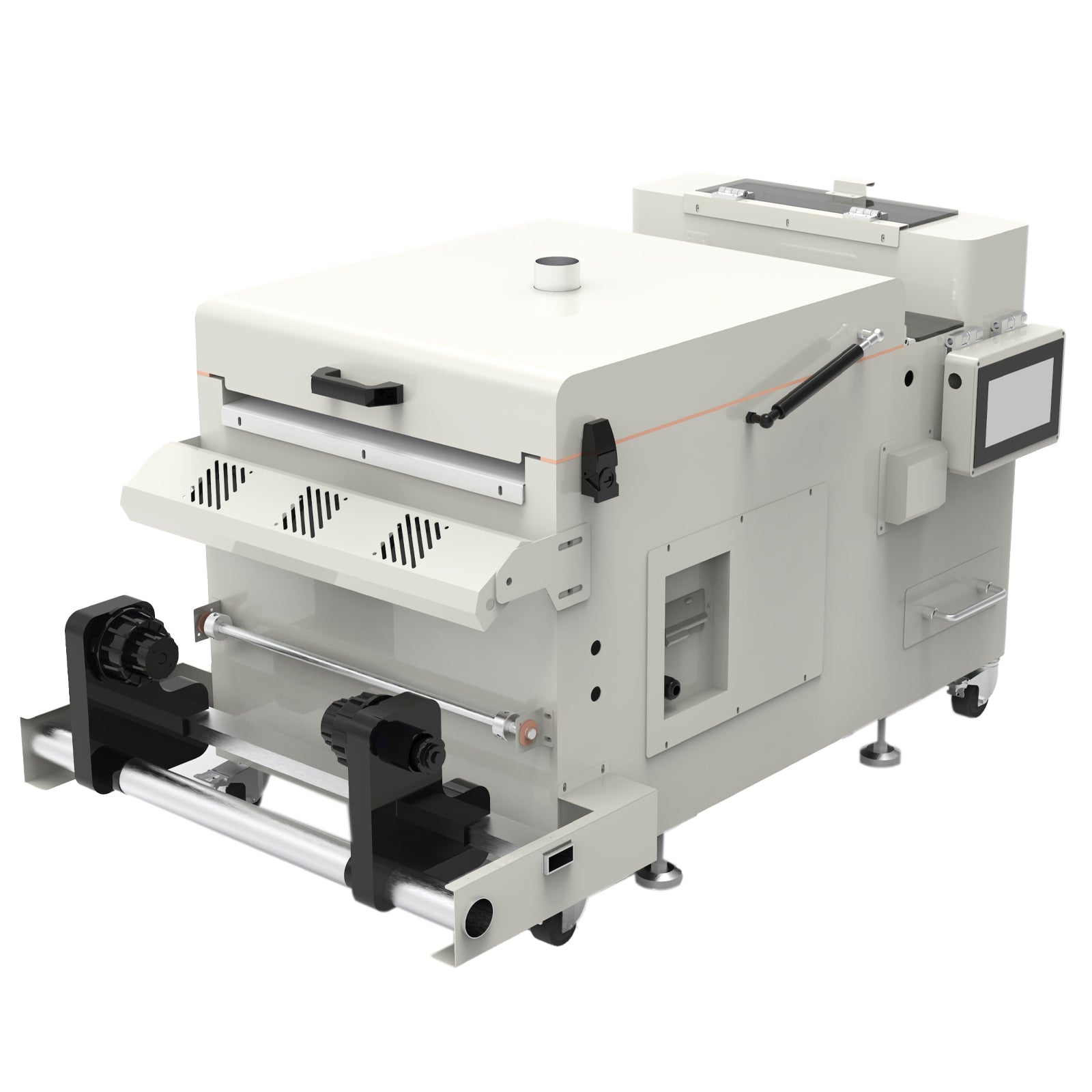

    CALCA 15in (380mm) Deluxe Automatic TPU Adhesive Powder Shaker and Dryer Machine with Touch Screen Maximum Shake Powder Width: 380mm (15inches)
    Functions: Shake powder control, dusting control, PID setting of curing temperature
    Heating and Drying Function: 6pcs Quartz infrared heat drying tube
    Rewinding Function: Automatic induction rewinding
    Heating Mode: Upper drying heating
    Cooling Mode: 3 fan air cooling (Single row)
    Machine Size: 46.7in x 26in x 25.2in (1185mm x 660mm x 641mm)
    Powder Shaker and Dryer Weight: 110.2lbs (50kg)
    Packaging Size: 45.3in x 27.6in x 27.6in (1150mm x 700mm x 700mm)
    Gross Weight: 180.8lbs (82kg)

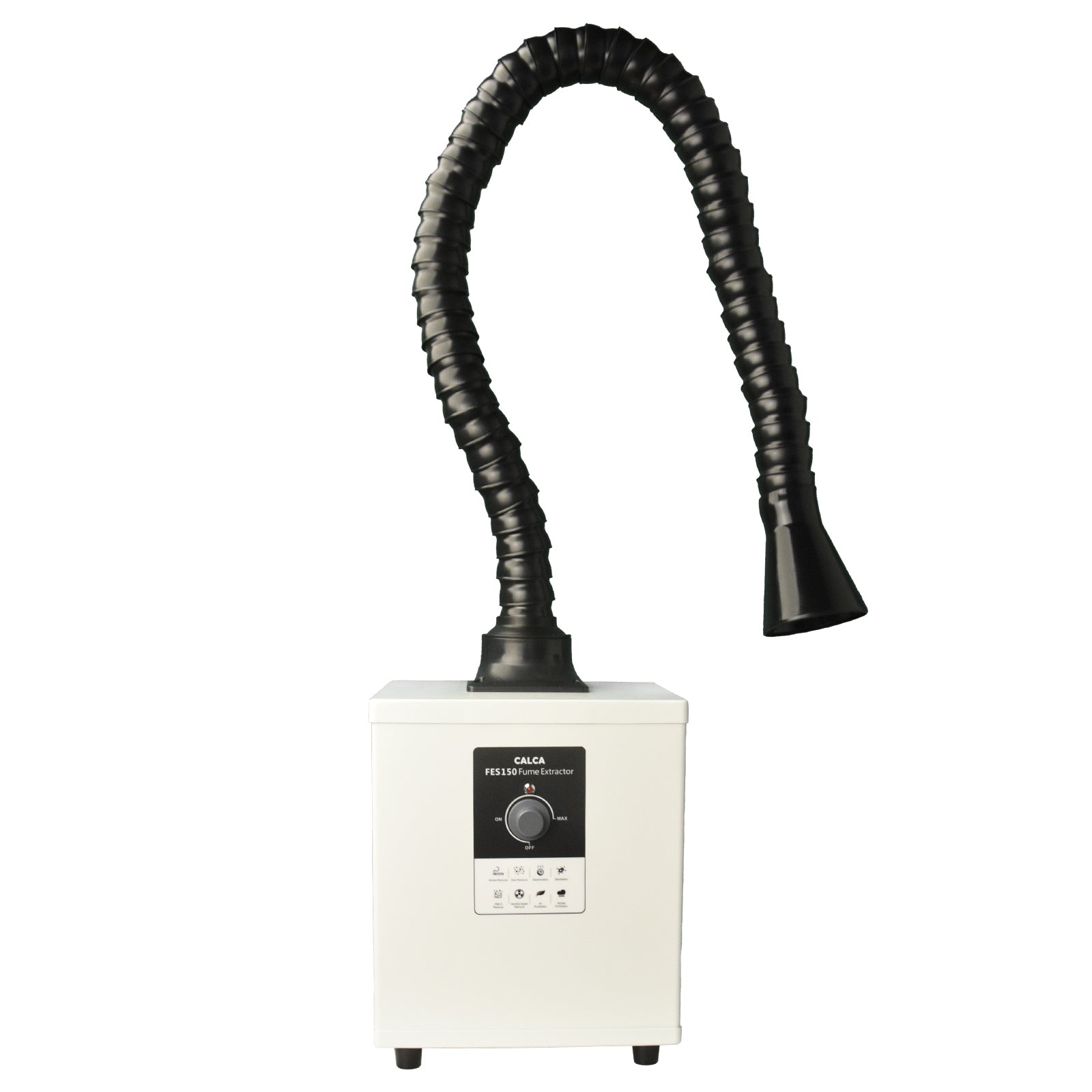

    CALCA 150W Fume Extractor Filter and Air Purifier with 3-Stage Filtration System for DTF Powder Shakers Rated Voltage: AC110V ± 5%
    Rated Current: 1.6A
    Rated Power: 180W
    Filtration efficiency: 0.3um, 95%
    Max air amount: 278m³/h
    Port: Φ75mm Flange
    Noise: ≤ 55dB
    Machine Size: 11in x 9.4in x 12.4in (280mm x 240mm x 315mm)
    Machine Weight: 26.5lbs (12kg)
    Package Size: 21.7in x 13.4in x 14.2in (550mm x 340mm x 360mm)
    Gross Weight: 28.2lbs (12.8kg)

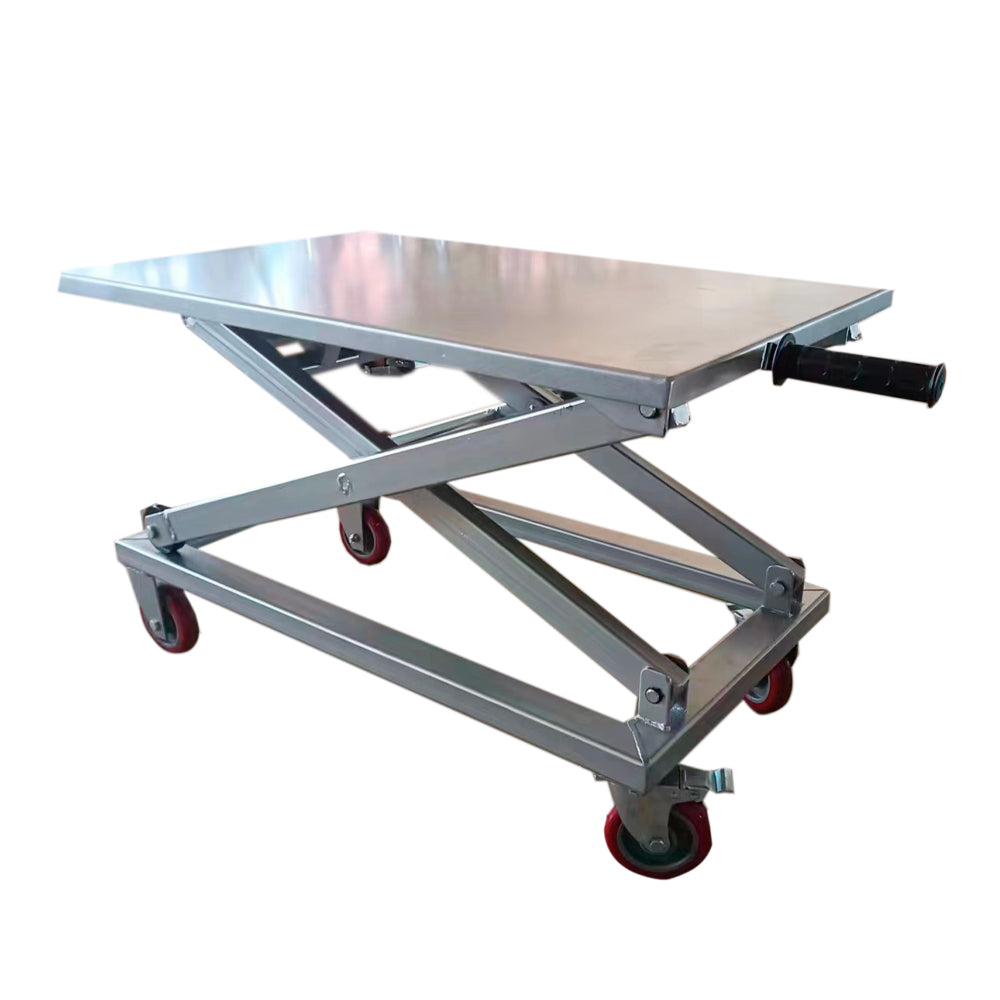

    CALCA 23.6in x 37.4in Height Adjustable Heat Printing Equipment Platform Cart Platform Size:23.6in x 37.4in
    Load Capacity: 660lbs / 300kg
    Min. Height: 17in / 44cm
    Max. Height: 40in / 100cm
    Packing Size: 39.4in x 24.4in x 17.7in / 100cm x 62cm x 45cm
    Net Weight: 132 lbs / 60kg
    Gross Weight: 154lbs / 70kg

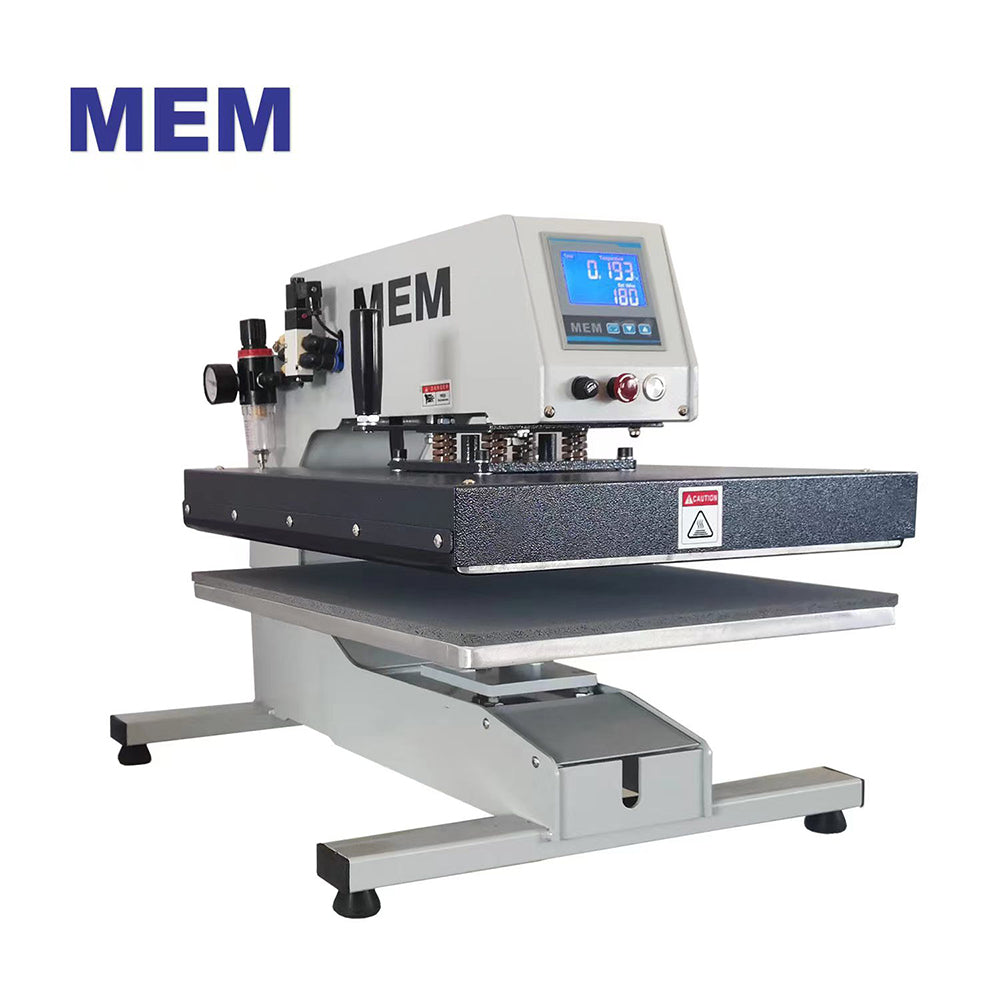

    MEM 16" x 20" High Quality Pneumatic Swing Away Heat Press Voltage and power :220V/2700W/13A or 110V /1800W/17A
    Check voltage at back side of the head
    Time Range: 0-999sec.
    Max. Temp. 500°F /260°C
    Cylinder distance:2in/5cm
    Heat plate size: 16"x 20"(40cm x 50cm)
    Dimensions(LxWxH): 30"x17"x21"( 77cm x 42cm x 54cm )
    Shipping Dimensions(LxWxH): 33"x22"x22" (84cm x 55cm x 56cm)
    Shipping Weight:165lbs(75kg)
    Max. press thickness: 2in(5cm)

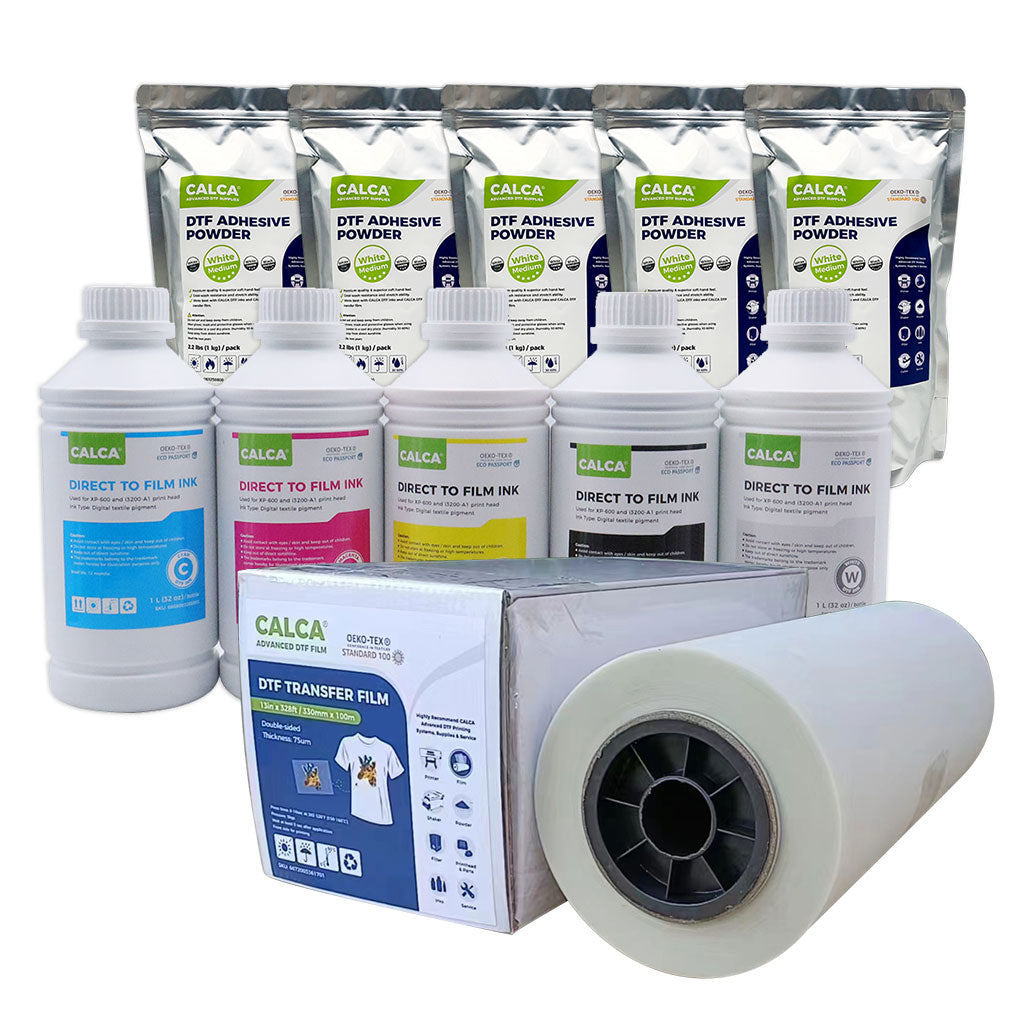

    CALCA A3 DTF Film Rolls Printing Starter Supply Pack (1L CMYK, 1L W Ink, 11 lbs Powder, A3 Roll Film) CALCA DTF Inks CMYK color, 1L each color; 1L x CALCA White Ink
    11lbs x CALCA Medium Adhesive Powder, White
    2 Roll x CALCA 11.8in x 328FT DTF Transfer Film Hot Peel
