• CALCA Prime 24inch DTF Complete Bundle
1 1

Wide Image Solutions

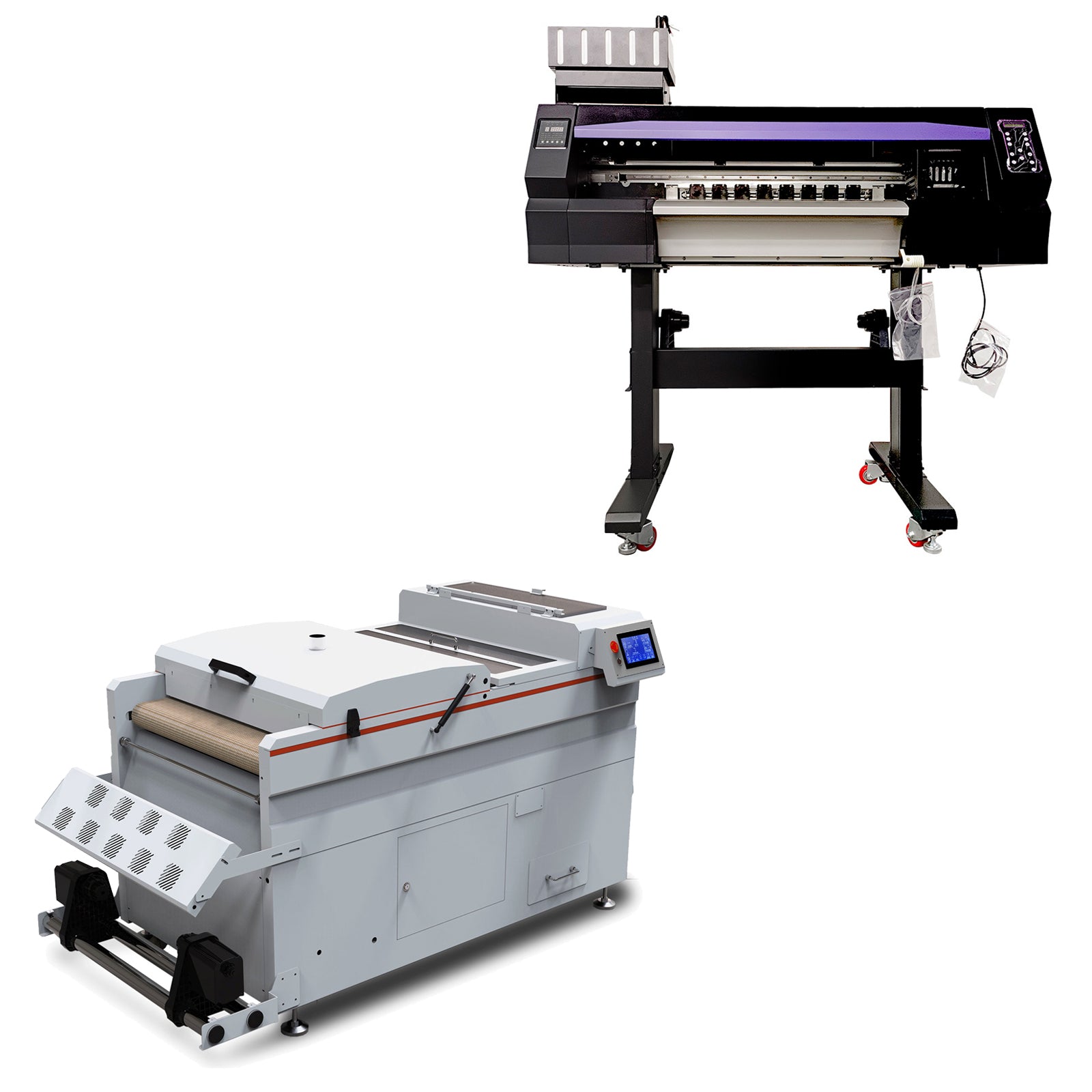

CALCA Prime 24inch DTF Complete Bundle

$11,999.00
$11,999.00
    CALCA Prime 24inch DTF Complete Bundle

    Tech Specs

    Description

    PLUS 24in automatic DTF powder shaker and dryer with vacuum absorption conveying platform and touch screen display, suitable for 2 heads high speed DTF printers.
    With a touch screen display controller, simple to use.
    Infrared drying and heating improves and protects color reproduction.
    With a absorption conveying platform secures the printing material to avoid bulging, run-offs, adhesion and media waste.
    DTF powder shaker and dryer unit can handle up to 24in wide DTF film.
    With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
    This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
    The vacuum absorption conveying platform secures the printing material to avoid bulging, run-offs, and media waste.

    Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.

    Requirements:
    Working Power Supply: AC110V, 50hz / 60hz, 1 phase.
    Current: 45.5A, 5000W
    With DTF film, power and Inks, you can easily and quickly create custom t-shirts and apparel.

    Remarks:
    DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.

    Specifications:

    Brand: USA registered
    Maximum Shake Powder Width: 600mm (23.6inches)
    Functions: Shake powder control, dusting control, PID setting of curing temperature
    Heating Element: 4pcs Quartz infrared heat drying tube
    Rewinding Function: Automatic induction rewinding
    Heating and Drying Mode: Front guide plate heating, upper drying curing
    Cooling Mode: 9 fan air cooling (2 row)
    Machine Size: 76.9in x 39.5in x 43in (1953mm x 1002mm x 1092mm)
    Power Shaker and Dryer Weight: 528lbs (240kg)
    Packaging Size: 70.5in x 44.1in x 44.5in (1790mm x 1120mm x 1136mm)
    Gross Weight: 638lbs (290kg)
    Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
    Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder

    Features:

    · With a warming inlet platform, automatic powder dispenser, paddle to remove excess powder, 4 bulb tunnel dryer and roll up at the end.
    · This all in one unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
    · Infrared drying and heating improves and protects color reproduction.
    · Customized powder recycling drawer, increases effectiveness.
    · Shake powder control, dusting control, PID setting of curing temperature.
    · Automatic powder feeding, evenly spreading powder.
    · The vacuum absorption conveying platform secures the printing material to avoid bulging, run-offs, and media waste.

    Prime 24inch (600mm) DTF Printer (Direct to Film Printer) with Dual Epson I3200-A1 Printheads

    Specifications:

    Item Model Prime 24inch (600mm) DTF Printer
    Available Print Head & Quantity Dual Epson I3200-A1 Printheads
    Max Printing Width 600mm
    Ink System Ink Type Pigment Ink
    Ink Color CMYK+W
    Ink Volume 1500ml
    Printing Mode
    (CMYK)    		 Mode Printing Speed (meter)
    High Speed Mode 7.65㎡/h
    Production Mode 4.8㎡/h
    Fabric Type cotton. linen.etc
    Working Condition Humidity 40%－85% （without condensate）
    Temperature 15 ℃－30 ℃
    Computer requirements Operating System Windows 7,Windows10 or Later Versions
    Hardware CPU:Intel core i5H↑Memory:8G↑/ Graphics Discrete
    Interface 1000MB Network Interface
    RIP Software DTF Master RIP Software
    Language Chinese/English
    Image format PNG / JPG / TIFF
    Rated Voltage AC110V, 50HZ / 60HZ, 1 phase.
    Power 9A, 1000W
    Rated Current 5A(220V)/9A(110V)
    Product size/Weight 1560L*700W*1360H(mm) /129KG
    Packing size/Weight 1890L*840W*760H(mm) /179KG
