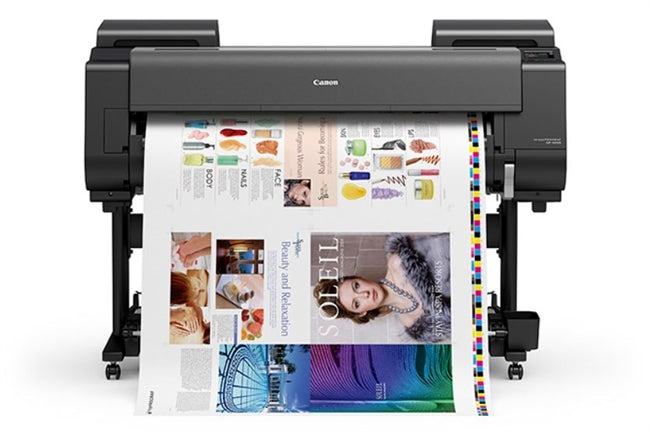

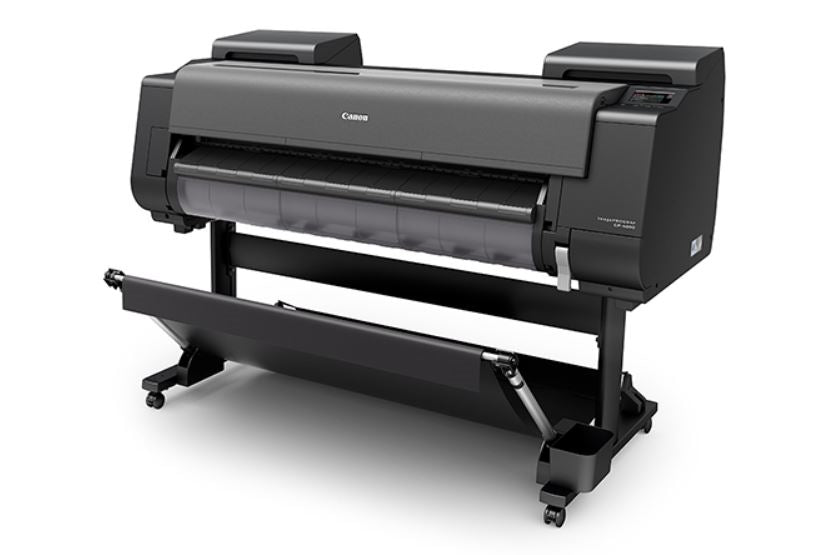

Canon imagePROGRAF GP-4000 44" Printer
Printer Type
10-color pigment ink plus Fluorescent Pink Ink
Number of Nozzles
Total: 18,432
All colors: 1,536 nozzles
All colors: 1,536 nozzles
Nozzle Pitch
600 dpi x 2
Non-firing nozzle detection and compensation
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2400×1200dpi (Max)
OS Compatibility
32bit: Windows® (Vista/7/8, 8.1/10)
64bit: Windows 7, Windows 8.1, Windows 10Windows Server 2008R2 , Windows Server 2012/2012R2Windows Server 2016 , Windows Server 2019
Mac (OS X 10.10.5～OS10.11), (OS 10.12～macOS 10.14)
64bit: Windows 7, Windows 8.1, Windows 10Windows Server 2008R2 , Windows Server 2012/2012R2Windows Server 2016 , Windows Server 2019
Mac (OS X 10.10.5～OS10.11), (OS 10.12～macOS 10.14)
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
USB Thumb Drive
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
USB Thumb Drive
Ink Droplet Size
Minimum 4 picoliter
Ink Capacity
160ml, 330ml, or 700ml per color
Ink Type
10 Pigment color basedplus Fluorescent Pink Ink
Color Set
Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Green, Gray, Red, Orange, Violet + Fluorescent Pink
Hard Drive
500 GB
Media Width
Cut Sheet - 6”- 44”
Roll Feed - 6”- 44”
Roll Feed - 6”- 44”
Media Thickness
Roll: 0.07 - 0.8 mm (2.8 - 31.5mil)
Maximum Roll Print Length
Roll Feed - 59' (18 meters)**
Maximum Media Roll Diameter
6.7” or less (170mm)
Borderless Printing Width
All Sizes
Paper Feed Method
Roll Feed: One Roll, Front-loading, Front Output
Manual Feed: Front-loading, Front Output
Manual Feed: Front-loading, Front Output
Languages
Swift Graphic Raster (SGRaster)
Noise Level Approx
Operation: 49 dB (A) or less
Accoustic Power: 6.6 Bels or less
Accoustic Power: 6.6 Bels or less
Physical Dimensions
46” (H) x 63” (W) x 39” (D)
Weight
approx. 274 lbs
Power Source
AC 100-240V（50-60Hz）
Power Consumption
Maximum: 99 W or less
Standby 2.0 W or less
Power Off: 0.3 W or less
Standby 2.0 W or less
Power Off: 0.3 W or less
Operating Environment
Temperature: 59 - 86°F
Relative Humidity: 10-80% (No Condensation)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
- Print Head (PF-10)
- Maintenance Cartridge (MC-30)
- Ink Tanks 160ml, 330ml, 700ml
Software Included
Professional Print & Layout, Quick Utility Toolbox, Accounting Manager, Device Management Console, Media Configuration Tool, PosterArtist Lite (PC only), PosterArtist (Available for purchase, PC only), Printer Driver Extra Kit (Free Layout and Advanced Preview), Direct Print Plus (PC only), Free Layout Plus (PC only)
